LX-1604H-3

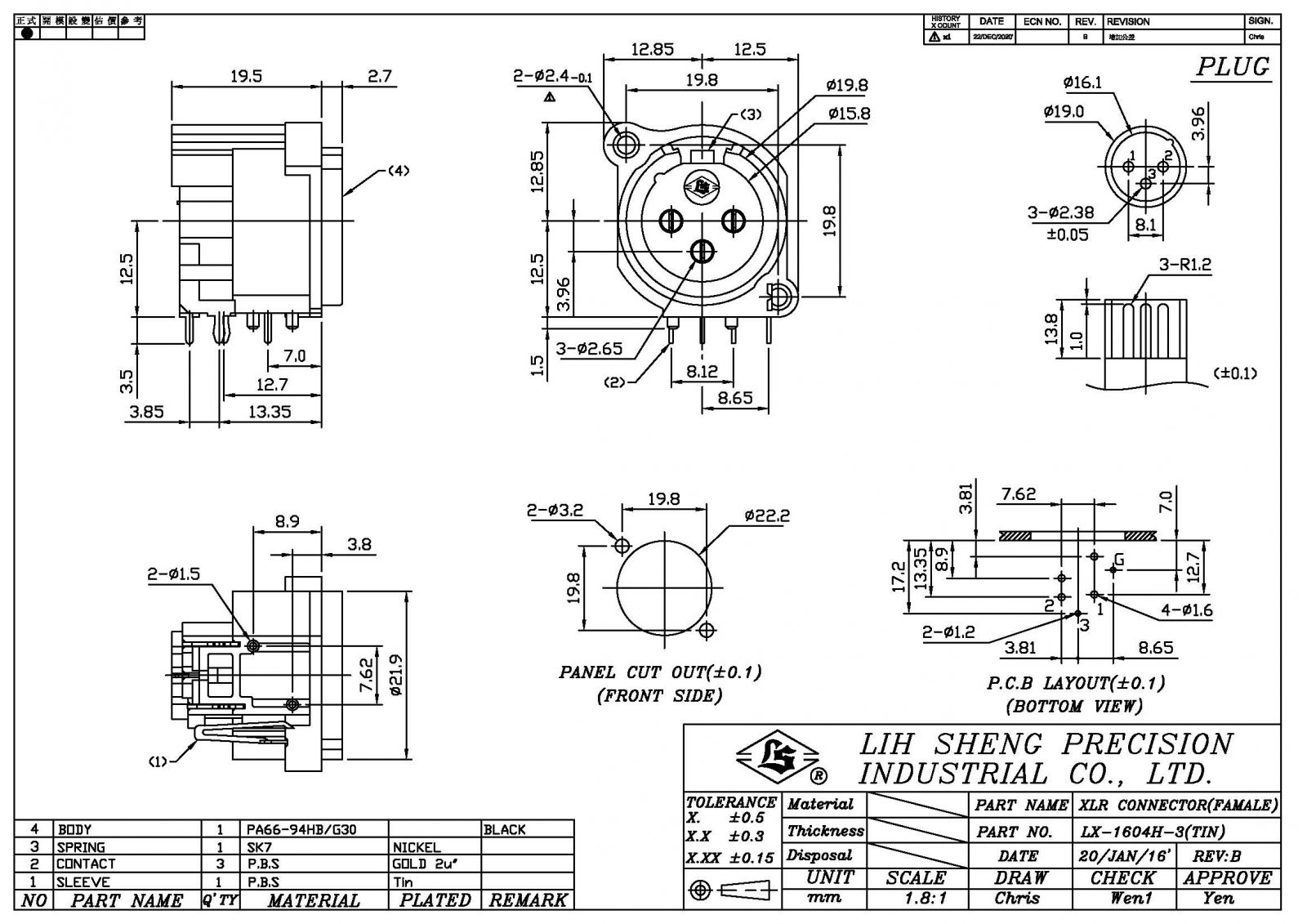

XLR phone jacks LX-1604H-3 Schematic Diagram

XLR phone jacks LX-1604H-3​ Product Description

The LX-1604H-3 XLR Jack is a top-tier connector engineered for high-performance audio and video applications. Ideal for use in sound systems, recording studios, and live performances, this XLR Jack ensures a stable, balanced connection with three points of contact to minimize interference and guarantee clear audio transmission. With a durability rating of 5000 mating cycles and compliance with ISO 9001, RoHS, and REACH standards, the LX-1604H-3 XLR Jack is built for long-lasting reliability in demanding professional environments, delivering superior audio quality and consistent performance.

The XLR connector is a prevalent component in professional audio and video equipment, commonly employed in settings like sound systems and recording studios. It ensures a stable connection, facilitating high-quality audio and video transmission over extended distances.

Designed with balance in mind, this connector features three points of contact: positive, negative, and ground, effectively minimizing interference and noise for clear audio transmission.

Thanks to its durability and reliability, the XLR connector finds frequent use in professional contexts such as music performances and recording studios, meeting the demands for high-quality audio.

In summary, the XLR connector's stable connection, balanced design, and exceptional signal transmission make it an essential and enduring component in the realms of audio and video.

XLR phone jacks LX-1604H-3​ Product Features

1. Stable Connection : The XLR connector offers a reliable and stable connection, suitable for long-distance audio and video transmission, ensuring signal integrity.

2. Balanced Design : Employing a balanced design with three points of contact – positive, negative, and ground – this connector effectively reduces interference and noise, guaranteeing clear audio transmission.

3. Versatility : Widely used in professional settings like sound systems, recording studios, and live music performances, the XLR connector is compatible with various audio and video devices.

4. High-Quality Audio : Leveraging its stability and balanced design, the XLR connector delivers excellent audio quality, catering to applications demanding superior sound.

5. Durability and Reliabilit y: The connector's robust design ensures long-lasting durability and reliability, making it suitable for use in diverse professional environments.

XLR phone jacks LX-1604H-3​ Product Specifications

XLR phone jacks LX-1604H-3​ Product Packaging Specifications

Packaged Using Vacuum-Formed Tray

XLR phone jacks LX-1604H-3​ Product Applications

1. Sound Systems : XLR connectors are extensively used in sound systems to connect microphones, speakers, and audio processors, ensuring high-quality audio transmission.

2. Recording Studios : In recording studio environments, XLR connectors are employed to connect microphones, audio interfaces, and more, facilitating professional audio recording and post-production.

3. Live Music Performances : Musicians use XLR connectors to link instruments to audio systems, ensuring sound projection and effects during live music performances.

4. Video and Film Production : In video and film production, XLR connectors are used to connect microphones, recording devices, contributing to high-quality audio recording.

5. Conference Facilities : In conferences and presentations, XLR connectors connect microphones and audio systems, ensuring clear voice transmission.

6. Music Production : Producers use XLR connectors to link music equipment to mixing consoles and recording devices, enabling music production and post-production adjustments.
