LUSC004-SF

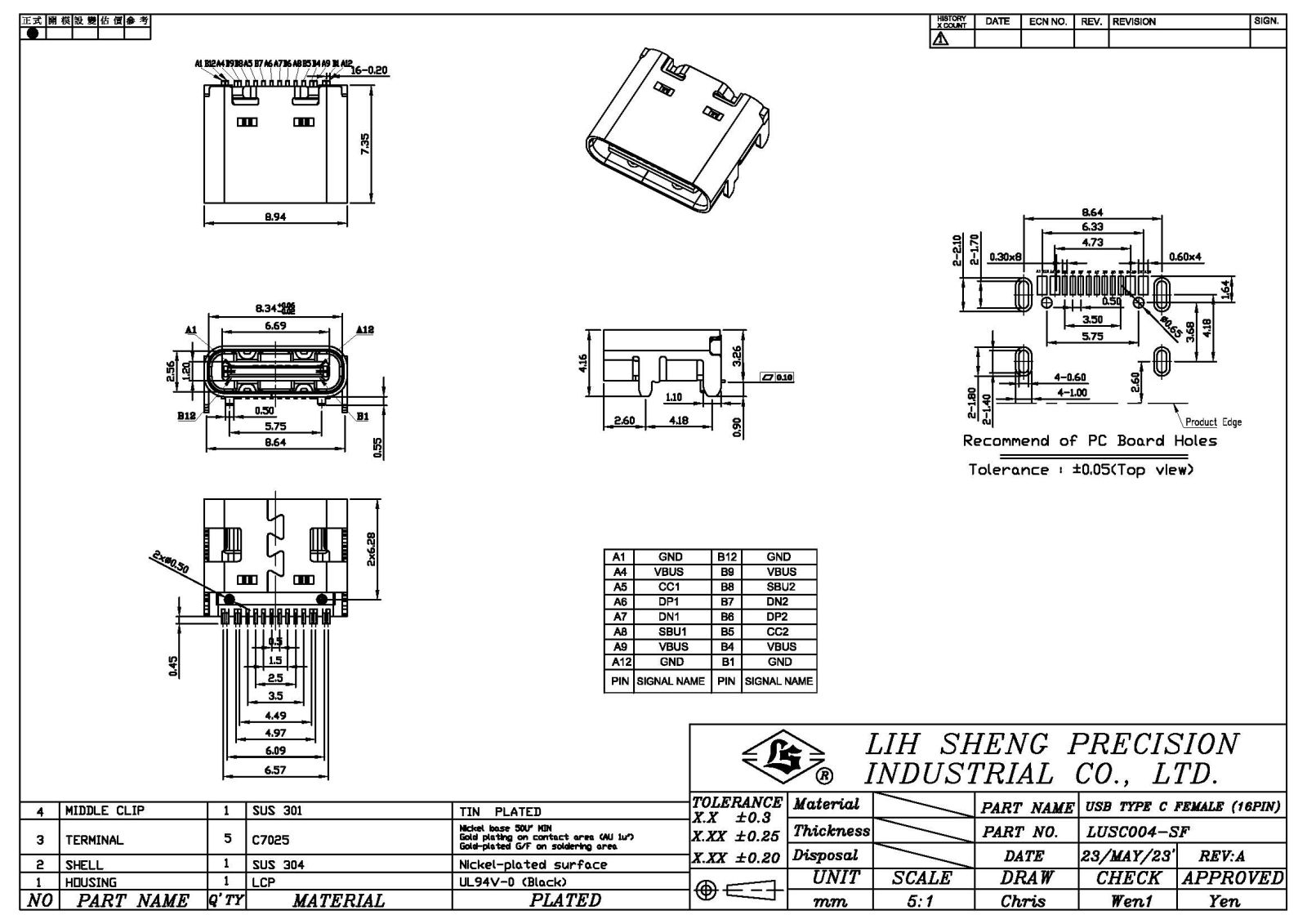

USB Type C Schematic Diagram

USB Type C Product Description

The LUSC004-SF is a 16 Pin USB Type C connector designed for devices requiring precise and reliable data transfer and charging. Built with durable materials, this connector ensures high compatibility with a range of devices, including smartphones, tablets, and cameras. It offers efficient performance, making it a versatile solution for modern connectivity needs.

We are proud to introduce our 16 Pin USB Type-C Connector, a sleek and efficient connectivity solution designed specifically for devices equipped with a 16 Pin USB Type-C interface. It provides reliable connection performance, allowing you to effortlessly connect and transfer data.

USB Type C Product Features

1. Precise Connectivity:
   - The 16 Pin USB Type-C Connector is meticulously designed to ensure a secure contact, minimizing any potential connection issues during plug-ins and ensuring a stable link.

2. Durable Material:
   - Crafted from high-quality materials, it offers exceptional durability and resistance to damage, making it suitable for extended use.

3. High Compatibility:
   - The 16 Pin USB Type-C Connector is compatible with devices featuring the corresponding interface, including smartphones, tablets, digital cameras, and more.

4. Versatile Applications:
   - Suitable for data transfer, charging, and other related connectivity needs, providing a comprehensive solution for your connection requirements.

5. Multifunctionality:
   - Despite having only 16 Pins, this connector delivers excellent transmission performance, meeting most basic connection needs.

USB Type C Product Specifications

USB Type C Product Packaging Specifications

Available in vacuum formed tray packaging or roll packaging

USB Type C Product Applications

USB Type-C serves as the essential power interface for a wide array of electronic devices. These encompass smartphones, tablets, laptops, desktop computers, digital cameras, projectors, external storage devices, audio equipment, and even automotive chargers. Its versatility extends to peripherals like gaming controllers, printers, and keyboards. This ubiquity positions USB Type-C as a cornerstone in modern device connectivity, offering high-speed, convenient power delivery across numerous applications."

USB Type C Related Document Downloads

Product drawings: LUSC004-SF

Product 3D file:
