LP-0843

RCA / Pin jacks LP-0843 Schematic Diagram

RCA / Pin jacks LP-0843 Product Description

The LP-0843 RCA PIN Jack is a widely used standard connector for audio and video applications. Featuring a simple yet reliable design, it is suitable for various electronic devices such as sound systems, televisions, and DVD players. This connector ensures clear transmission of audio and video signals and is color-coded (red for right audio channel, white for left audio channel, and yellow for video signal) for easy connection. The LP-0843 is ideal for home entertainment, professional audio equipment, and broadcasting, guaranteeing stable connections and high-quality performance.

The RCA jack, also known as the pin jack, is a widely used standard connector for audio and video connections. It finds extensive application in various electronic devices such as sound systems, televisions, DVD players, and more. This connector offers a simple and reliable way to transmit audio and video signals between different devices.

RCA jacks are often color-coded to differentiate between various signal types. For instance, red indicates the right audio channel, white represents the left audio channel, and yellow signifies the video signal. This color-coded labeling assists users in quickly identifying the correct connections.

With its straightforward design and widespread utility, the RCA jack is suitable for both home entertainment and professional audio/video equipment. It ensures dependable connections for music, movies, and other multimedia experiences.

In summary, the RCA jack, also referred to as the pin jack, is an essential component in audio and video equipment due to its simple, reliable connectivity and versatility. It guarantees clear signal transmission and smooth entertainment experiences.

RCA / Pin jacks LP-0843 Product Features

1. Versatile : Ideal for audio and video connections in various applications.

2. Color-Coded : Easily connect the right channels with color-coded plugs.

3. Universal Compatibility : Standardized design works with many devices.

4. Secure : Snug fit ensures reliable connections.

5. Durable : Built to withstand frequent use.

6. User-Friendly : Easy setup for all users.

7. Broad Use : Suitable for home and professional setups.

8. Enhanced Quality : Ensures clear audio and video transmission.

RCA / Pin jacks LP-0843 Product Specifications

RCA / Pin jacks LP-0843 Product Packaging Specifications

The smallest packaging is a PE bag.

RCA / Pin jacks LP-0843 Product Applications

1. Home Entertainment : Connecting devices like DVD players, gaming consoles, and sound systems to TVs and speakers for immersive experiences.

2. Audio Systems : Linking amplifiers, receivers, and audio sources for high-quality sound in homes and studios.

3. Video Playback : Integrating camcorders, video players, and monitors for clear video playback.

4. Studio Equipment : Used in recording studios for audio monitoring and mixing.

5. Broadcasting : Connecting cameras and microphones for reliable signal transmission.

6. Education : Connecting multimedia devices to projectors for enhanced presentations.

7. Public Address : Disseminating clear audio in events and public spaces.

8. Professional Audio : Deployed in live sound setups and DJ equipment for quality audio output.

RCA / Pin jacks LP-0843 Related Document Downloads

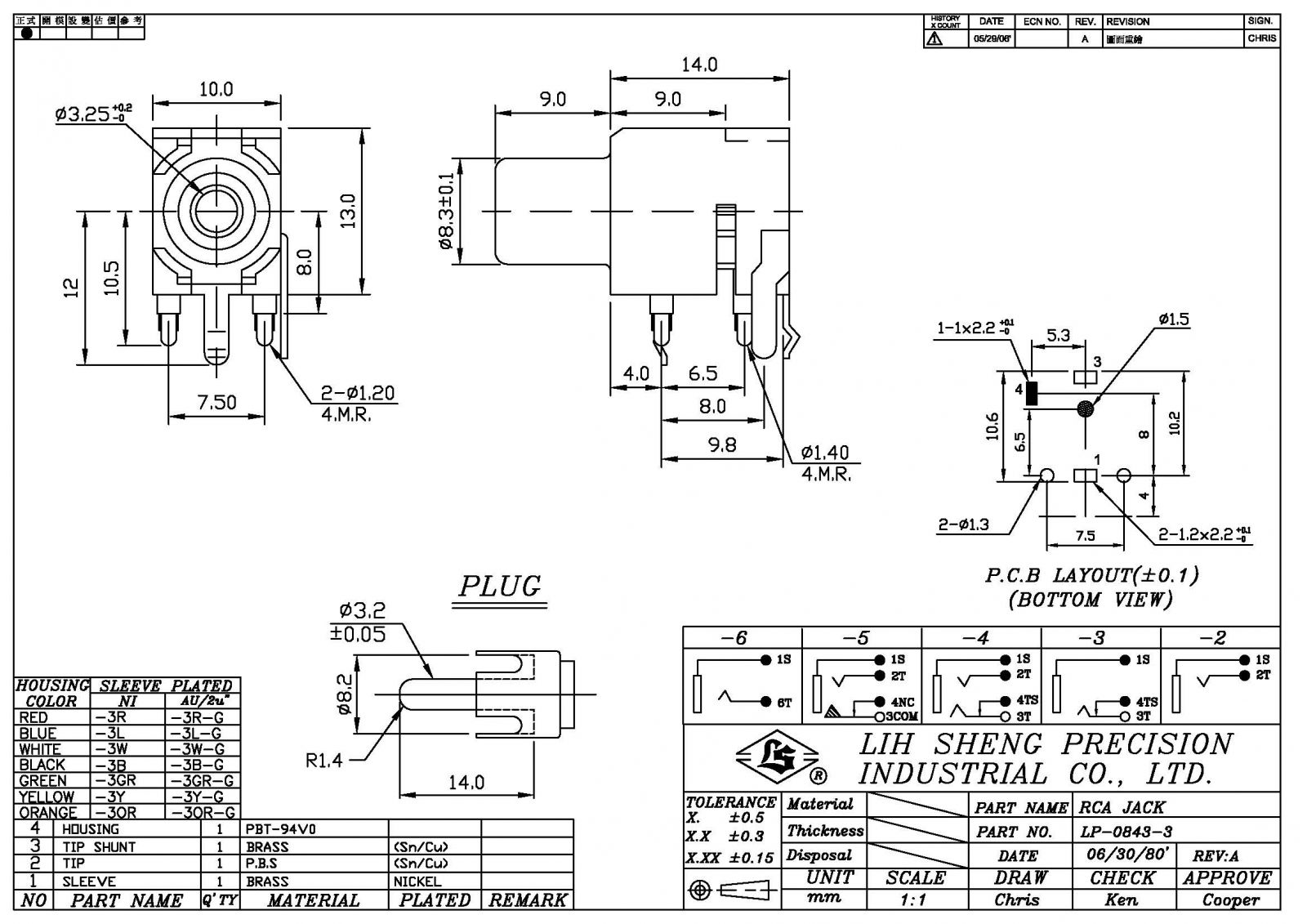

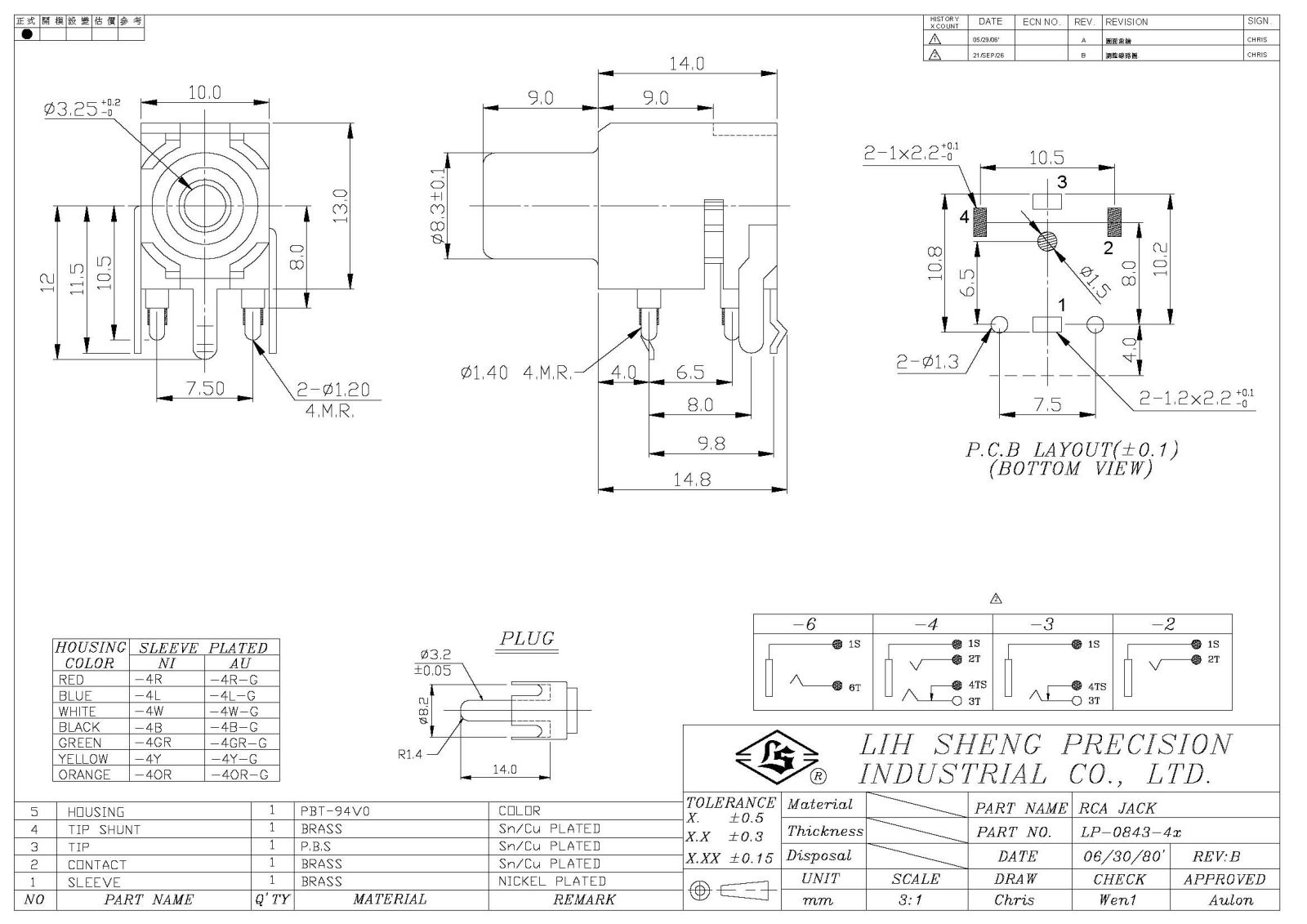

Product drawings: LP-0843

Product 3D file:
