LA-2004-4

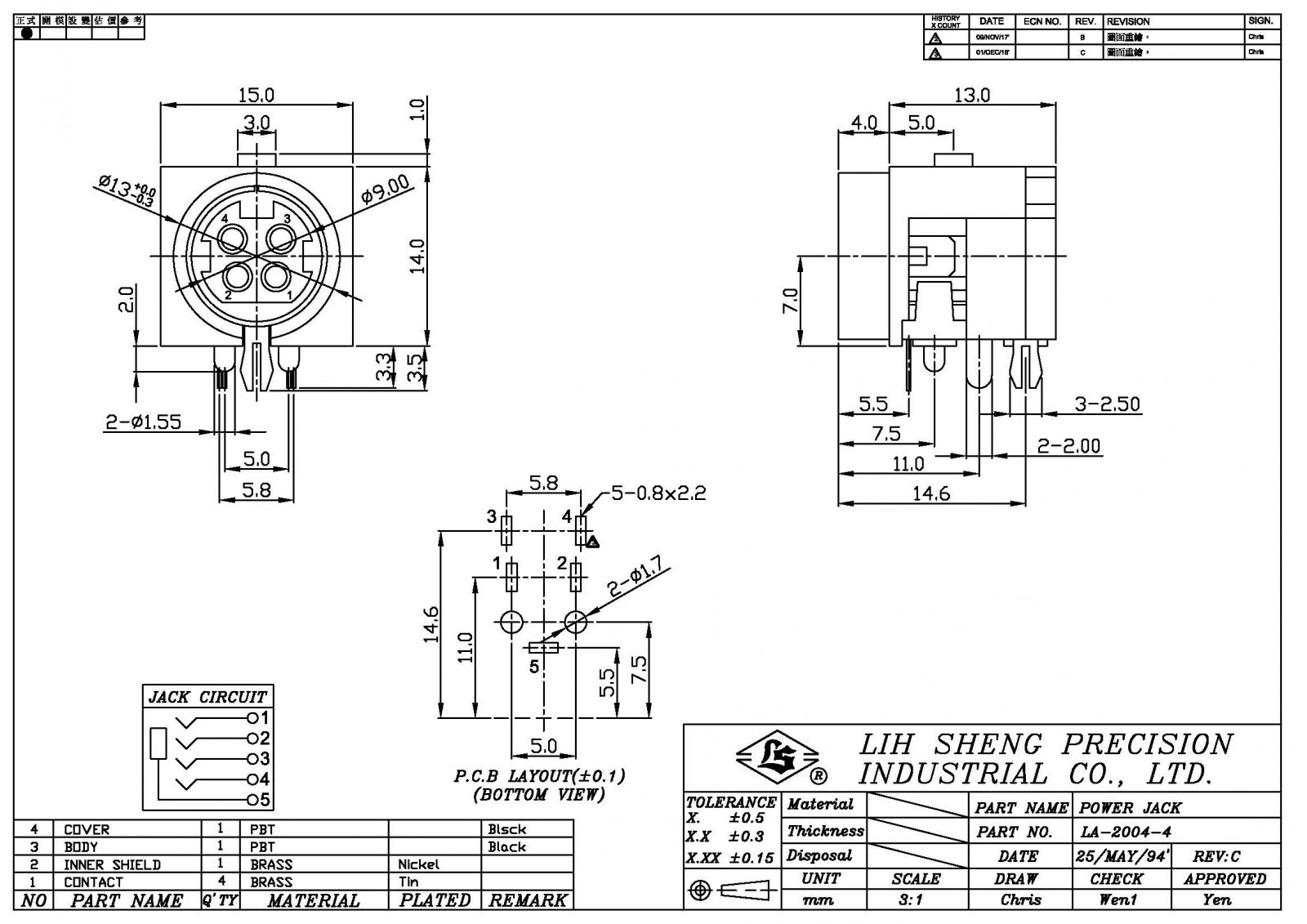

POWER DIN jacks LA-2004-4 Schematic Diagram

POWER DIN jacks LA-2004-4 Product Description

The LA-2004-4 POWER DIN Jack is a high-current power connector designed to provide a secure and stable power supply for a wide range of electronic devices. Ideal for use in power supplies, audio equipment, and industrial machinery, this connector ensures consistent power delivery even in demanding environments. With its plug-and-play orientation design, the LA-2004-4 minimizes the risk of misinsertion, protecting your devices from potential damage. Built to endure, this durable and reliable connector meets industry standards, making it an essential component for maintaining seamless device operation across various applications.

The Power DIN jack, also known as the Power DIN connector, is a common power connection component widely employed in various electronic devices, including power supplies, audio equipment, and electronic instruments. This connector provides a dependable power interface, ensuring a stable power supply.

Power DIN jacks typically feature specific plug-and-play designs that ensure the correct connection orientation, preventing misinsertion and incorrect connections. This design aids in safeguarding devices against potential damage from improper connections.

Due to its widespread applicability and dependable performance, the Power DIN jack finds utility across various scenarios, from consumer electronics to professional equipment. It serves as a vital component essential for ensuring the proper operation of devices.

POWER DIN jacks LA-2004-4 Product Features

1. Reliable Power Connection : The Power DIN jack offers a secure and dependable power connection, ensuring consistent and stable power supply to connected devices.

2. Orientation Design : Featuring a plug-and-play design with specific orientation, the jack prevents misinsertion and incorrect connections, enhancing safety and protecting devices from potential damage.

3. Wide Applicability : Designed for versatility, the Power DIN jack is suitable for a diverse range of electronic devices, spanning from household electronics to professional equipment.

4. Durable Build : Constructed with durability in mind, the jack's robust design ensures longevity and reliability, making it well-suited for prolonged use.

5. Integral Component : As a critical component, the Power DIN jack plays a pivotal role in maintaining device functionality, ensuring uninterrupted power supply for seamless operation.

6. Industry Standard : Adhering to industry standards, the jack's compatibility and performance meet established norms, contributing to its trusted reputation.

POWER DIN jacks LA-2004-4 Product Specifications

POWER DIN jacks LA-2004-4 Product Packaging Specifications

Packaged Using Vacuum-Formed Tray

POWER DIN jacks LA-2004-4 Product Applications

1. Power Supplies : Power DIN jacks are commonly used in power supply units, providing a secure and efficient connection for delivering power to various electronic devices.

2. Audio Equipment : These jacks find application in audio systems, amplifiers, and speakers, ensuring a stable power supply for optimal audio performance.

3. Electronics Instruments : Power DIN jacks are utilized in electronic instruments such as synthesizers, controllers, and musical equipment, delivering reliable power for their operation.

4. Industrial Equipment : They are employed in industrial settings, powering machinery, control systems, and electronic components for smooth and consistent functioning.

5. Consumer Electronics : Power DIN jacks are present in a wide range of consumer electronics like televisions, gaming consoles, and home appliances, enabling proper operation.

6. Professional Gear : Professional equipment like studio lighting, broadcasting devices, and communication systems rely on Power DIN jacks for reliable power connectivity.

7. Medical Devices : In medical equipment such as diagnostic tools and monitoring devices, these jacks ensure continuous and safe power supply.

POWER DIN jacks LA-2004-4 Related Document Downloads

Product drawings: LA-2004-4

Product 3D file:
