LNB0508BC MINI DIN Jack Product Image

LNB0508BC

Model
LNB0508BC

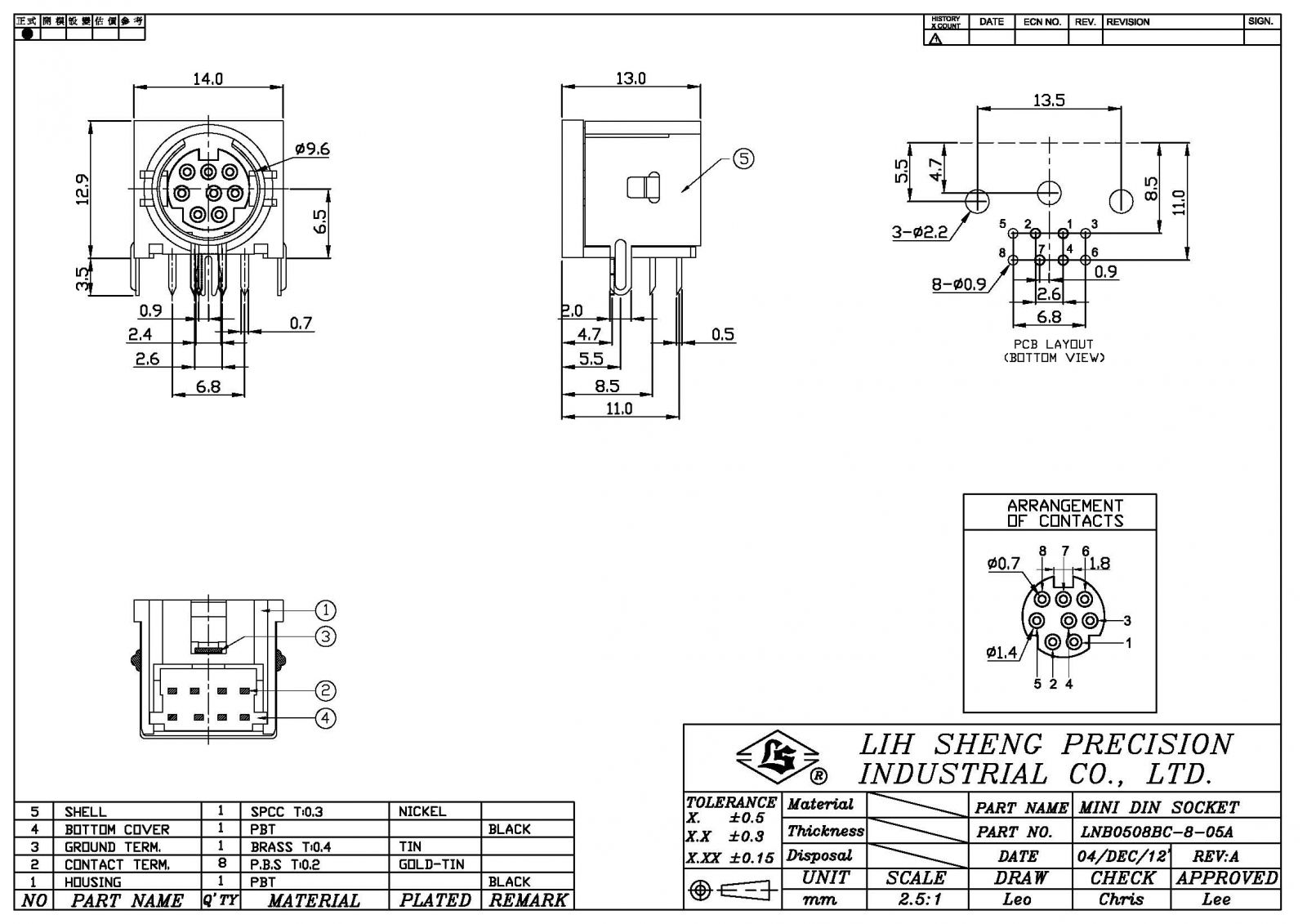

MINI DIN Jacks LNB0508BC Schematic Diagram

MINI DIN Jacks LNB0508BC Product Description

LNB0508BC Mini DIN Socket ensures secure connections for audio, video, and data. Ideal for space-constrained setups in computers, gaming consoles, and more. RoHS compliant and UL 94V-0 rated, offering high durability and data integrity.

DIN jacks, also known as Mini-DIN connectors, are versatile components for audio, video, and data transmission. With various pin configurations and compact sizes, they fit computers, audio setups, and gaming consoles.

These jacks have 4 to 9 pins, enabling efficient signal transfer. Mini-DIN connectors are smaller for space-constrained setups.

Labeling ensures correct insertion, reducing errors.

DIN and Mini-DIN jacks are essential for reliable connectivity, serving various devices.

In essence, these jacks provide versatile, space-saving connectivity for audio, video, and data across devices.



MINI DIN Jacks LNB0508BC Product Features

1. Versatility : These jacks offer versatile connectivity for audio, video, and data transmission, serving diverse electronic applications.

2. Compact Design : Mini-DIN connectors feature a compact form factor, ideal for space-constrained setups and devices.

3. Pin Configurations : Available with 4 to 9 pins, enabling efficient transmission of various signals, from analog to digital.

4. Secure Connection : Snug fit and locking mechanisms ensure a secure and reliable connection, minimizing signal disruptions.

5. Coding Labels : Clear labeling and coding prevent insertion errors, guaranteeing accurate connections.

6. Broad Compatibility : Suitable for computers, audio equipment, gaming consoles, and more, ensuring widespread applicability.

7. Data Integrity : These connectors maintain data integrity, delivering clear audio, video, and data signals.



MINI DIN Jacks LNB0508BC Product Specifications

Electrical Rating

 2A / 12V DC Max.

Durability

 5000 Mating Cycles

Insertion

 0.5 ~ 4.0 Kgf

Withdrawal force

 0.5 ~ 4.5 Kgf

Operating remperature

 -25°C to 70°C

Soldering heat

 260±5°C / DIP time : 5±1 seconds

Flammablllty

 UL 94V-0 Rated

Environmental friendly

 RoHS , REACH

Certificate

 ISO 9001



MINI DIN Jacks LNB0508BC Product Packaging Specifications

Packaged Using Vacuum-Formed Tray



MINI DIN Jacks LNB0508BC Product Applications

1. Computers : Used to connect keyboards, mice, and other peripherals to computer systems, ensuring reliable data transmission.

2. Audio Systems : Employed in audio equipment, such as MIDI controllers and synthesizers, for seamless audio signal transmission.

3. Video Devices : Connecting devices like cameras, projectors, and monitors, ensuring clear video transmission in presentations and media setups.

4. Gaming Consoles : Used for controllers and accessories, enabling responsive gameplay and enhancing the gaming experience.

5. Communication Devices : Connecting modems, routers, and telecommunication equipment for reliable data transfer.

6. Automotive Industry : Utilized in car audio systems, GPS devices, and multimedia interfaces for in-car entertainment and navigation.

7. Consumer Electronics : Connecting remote controls, home theater systems, and digital TV receivers, enhancing home entertainment setups.

8. Industrial Equipment : Used in machinery and automation systems, enabling communication and control in manufacturing environments.



MINI DIN Jacks LNB0508BC Related Document Downloads

Product drawings: LNB0508BC

Product 3D file:
