LN-0505 DIN Socket Product Image

LN-0505

Model
LN-0505
Inquiry
Table of contents

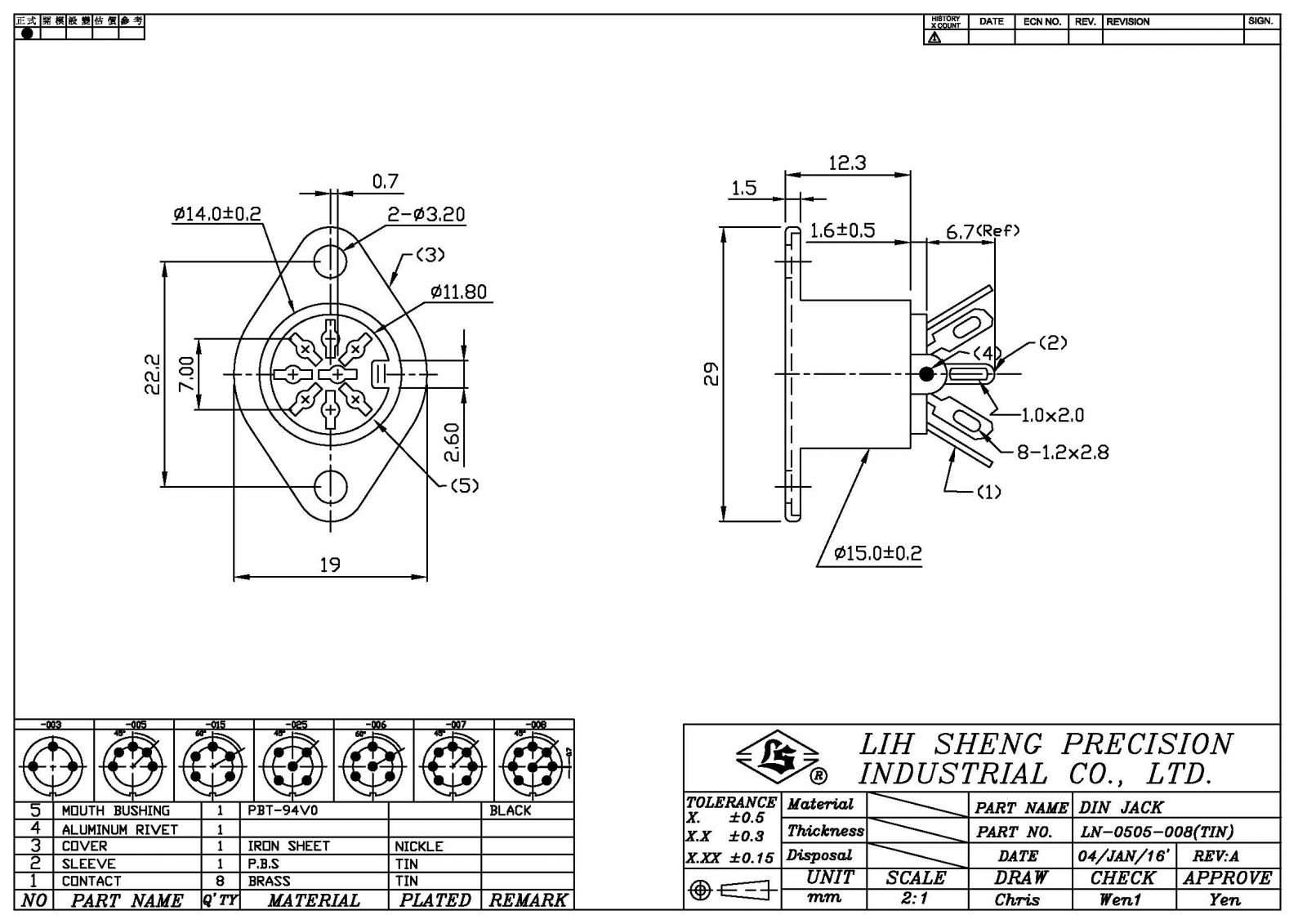

DIN jacks LN-0505 Schematic Diagram

DIN jacks LN-0505 ​Product Description

Discover the LN-0505 DIN Socket, a compact Mini-DIN jack designed for versatile connectivity in computers, audio, video, and gaming devices. Ensure secure, reliable connections with various pin configurations. Ideal for space-constrained setups.

DIN jacks, also known as Mini-DIN connectors, are versatile components for audio, video, and data transmission. With various pin configurations and compact sizes, they fit computers, audio setups, and gaming consoles.

These jacks have 4 to 9 pins, enabling efficient signal transfer. Mini-DIN connectors are smaller for space-constrained setups.

Labeling ensures correct insertion, reducing errors.

DIN and Mini-DIN jacks are essential for reliable connectivity, serving various devices.

In essence, these jacks provide versatile, space-saving connectivity for audio, video, and data across devices.



DIN jacks LN-0505 ​Product Features

1. Versatility : These jacks offer versatile connectivity for audio, video, and data transmission, serving diverse electronic applications.

2. Compact Design : Mini-DIN connectors feature a compact form factor, ideal for space-constrained setups and devices.

3. Pin Configurations : Available with 4 to 9 pins, enabling efficient transmission of various signals, from analog to digital.

4. Secure Connection : Snug fit and locking mechanisms ensure a secure and reliable connection, minimizing signal disruptions.

5. Coding Labels : Clear labeling and coding prevent insertion errors, guaranteeing accurate connections.

6. Broad Compatibility : Suitable for computers, audio equipment, gaming consoles, and more, ensuring widespread applicability.

7. Data Integrity : These connectors maintain data integrity, delivering clear audio, video, and data signals.



DIN jacks LN-0505 ​Product Specifications

Electrical Rating

  1A / 24V DC Max.

Durability

  5000 Mating Cycles

Insertion

  0.5 ~ 5.5 Kgf

Withdrawal force

  0.5 ~ 5.5 Kgf

Operating remperature

  -25°C to 70°C

Soldering heat

  260±5°C / DIP time : 5±1 seconds

Flammablllty

  UL 94V-0 Rated

Environmental friendly

  RoHS , REACH

Certificate

  ISO 9001



DIN jacks LN-0505 ​Product Packaging Specifications

The smallest packaging is a PE bag.



DIN jacks LN-0505 ​Product Applications

1. Computers : Used to connect keyboards, mice, and other peripherals to computer systems, ensuring reliable data transmission.

2. Audio Systems : Employed in audio equipment, such as MIDI controllers and synthesizers, for seamless audio signal transmission.

3. Video Devices : Connecting devices like cameras, projectors, and monitors, ensuring clear video transmission in presentations and media setups.

4. Gaming Consoles : Used for controllers and accessories, enabling responsive gameplay and enhancing the gaming experience.

5. Communication Devices : Connecting modems, routers, and telecommunication equipment for reliable data transfer.

6. Automotive Industry : Utilized in car audio systems, GPS devices, and multimedia interfaces for in-car entertainment and navigation.

7. Consumer Electronics : Connecting remote controls, home theater systems, and digital TV receivers, enhancing home entertainment setups.

8. Industrial Equipment : Used in machinery and automation systems, enabling communication and control in manufacturing environments.



DIN jacks LN-0505 ​Related Document Downloads

Product drawings: LN-0505

Product 3D file:
