2.5mm audio jack LJE0250

LJE0250

Model
LJE0250
Inquiry
Table of contents

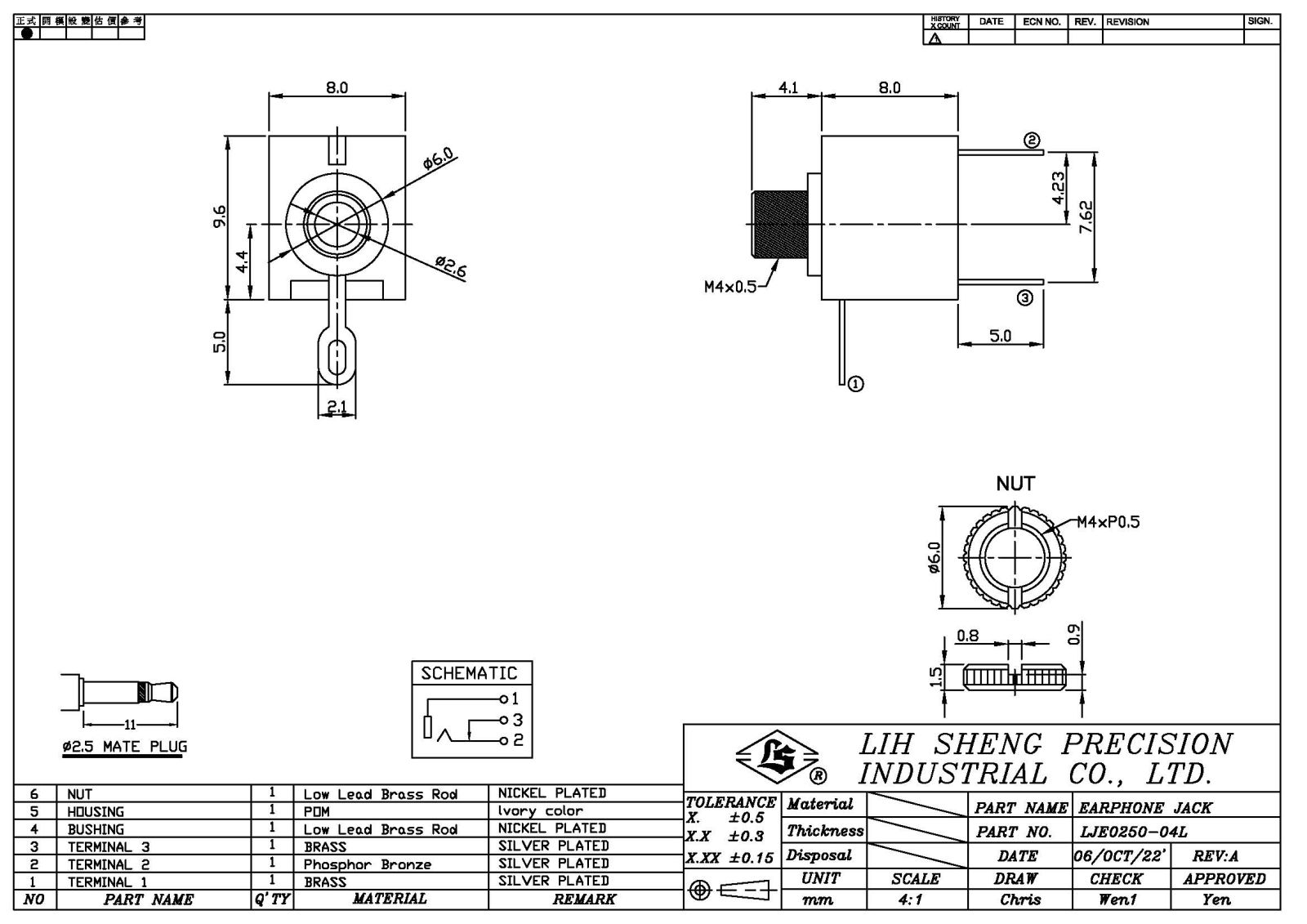

2.5mm audio jack LJE0250 Schematic Diagram

2.5mm audio jack LJE0250 Product Description

Lih Sheng is a leading manufacturer and supplier of high-quality audio jacks. Our LJE0250 2.5mm audio jack is a versatile connector that delivers clear stereo sound and microphone input in a compact design. It is the perfect choice for a variety of applications, including phones, audio players, headphones, speakers, and more.

Explore the 2.5mm audio jack LJE0250 from Lih Sheng Precision, a compact TRS stereo connector designed for seamless sound across various devices. With its small 2.5mm size, it's ideal for tight spaces, providing clear stereo audio and convenient microphone input. Perfect for phones, audio players, headphones, speakers, and more. Discover our expertise in audio jack manufacturing. Check out the product specifications, features, and applications. Download product drawings for LJE0250.

Introducing the 2.5mm jack: a compact audio connector for seamless sound across devices. With its small 2.5mm size, it's perfect for tight spaces. Designed with the trusted TRS setup, it ensures clear stereo audio and even microphone input. Ideal for phones, audio players, and compact radios. While tech is shifting to smaller connectors, the 2.5mm jack remains vital for compact audio. Your link to great sound in a tiny package.

Discover the versatile 2.5mm audio jack LJE0250 from Lih Sheng Precision. Our compact design fits tight spaces, delivering clear stereo sound and microphone input. Ideal for phones, players, and more. Explore our audio jack manufacturing expertise.

2.5mm audio jack LJE0250 Product Features

  1. Compact Design: Ideal for tight spaces, providing installation flexibility.
  2. Stereo Audio: TRS connection for clear, immersive sound.
  3. Microphone Input: Convenient voice recording and calls.
  4. Wide Applicability: Perfect for phones, players, headphones, and speakers.
  5. 5. Technological Shift: Consider long-term compatibility.
  6. 6. Audio Quality: Small size, outstanding music experience.
  7. 7. Easy Connection: Effortless plug-and-play design.
  8. 8. Adapter Compatibility: Adapters for broader connector compatibility.

2.5mm audio jack LJE0250 Product Specifications

Electrical Rating 1A / 12V DC Max.
Durability 5000 Mating Cycles
Insertion 0.3 ~ 2.0 Kgf
Withdrawal force 0.3 ~ 2.0 Kgf
Operating remperature -20°C to 60°C
Soldering heat 240±5°C / DIP time : 5±1 seconds
Flammablllty UL 94V-0 Rated
Environmental friendly RoHS , REACH
Certificate ISO 9001

2.5mm audio jack LJE0250 Product Packaging Specifications

The smallest packaging is a PE bag.

2.5mm audio jack LJE0250 Product Applications

  1. Mobile Phones and Tablets : The 2.5mm jack is often used in smaller mobile phones and tablets where audio connectivity needs to be achieved within limited space.
  2. Portable Audio Players : It's employed in some small portable audio players like MP3 players or portable radios, where audio playback is required in a compact form factor.
  3. Headphones and Earbuds : Many headphones and earbuds utilize the 2.5mm jack, allowing users to connect them to devices that support this connector for music and audio enjoyment.
  4. Small Speakers : The 2.5mm jack can also be found in some small speakers, which might be used for personal music listening or small-scale events.
  5. Communication Devices : Certain communication devices, such as specific wireless walkie-talkies or their accessories, might use the 2.5mm jack for audio input and output.

2.5mm audio jack LJE0250 Related Document Downloads

Product drawings:LJE0250

Product 3D file:
